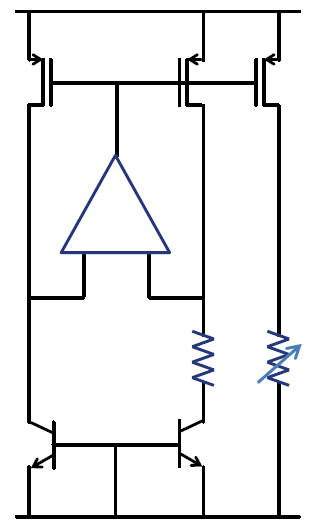

Radiation-tolerant bandgap reference voltage
Description:
The RTBG cell of the nSBG_XF180_1V8 library is a radiation tolerant bandgap reference voltage generator IP cell powered at 1.8V ±10%, designed on the XFAB XH018 technology.
Applications:
AD and DA converters
Precision regulators
Battery-powered instrumentation
Portable medical equipment
Radiation-sustaining systems
Main features:
Single 1.8V ±10% power supply
20μA typical power consumption
0.9V output reference voltage
-40 to +125°C junction temperature
Less than 15ppm/K temperature drift
68dB power supply rejection
Standby/power down mode
Low silicon surface
Product brief:
Main characteristics:
1.8V ±10% power supply
-40 to +125°C
Radiation tolerant
XFAB XH018
Deliverables:
GDS II layouts
LEF abstracts
CDL netlists
Liberty timings
Verilog description
A full datasheet
An integration note
Status:
Silicon proven
Radiation proven:
Yes
Automotive grade:
No
