10b 64MSps power-efficient ΔΣ ADC
Description:

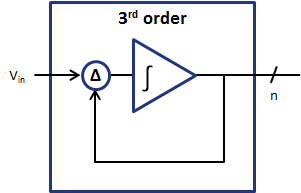

The nSAD_ST130M_1V2_AD10b64M is a 64MS/s, 9.9 ENOB, power-efficient ΔΣ ADC designed on the ST 130 M technology. Built around a fully-differential 3rd-order single-bit low-pass modulator, it consumes 1.9mW on silicon, reaching an energy efficiency of 31fJ/conversion-step.
Applications:
Very low power communications (Zigbee, Bluetooth LE)
Very low power industrial control and instrumentation
Battery powered systems
Automotive and logistics equipment
Main features:
Includes reference generator and biasing circuits
1.9mW consumption in operation
Single 1.2V supply
0.15mm² area
700mVpp_diff input dynamic range
61.3dB SNDR
80dB SFDR
1MHz modulator signal bandwidth
Product brief:
Main characteristics:
1.2V supply voltage
9.9 ENOB
64MS/s
1.9mW
ST 130 M
Deliverables:
GDS II layouts
LEF abstracts
CDL netlists
Liberty timings
Verilog description
A full datasheet
An integration note
Status:
Silicon proven
Radiation proven:
No
Automotive grade:
No
