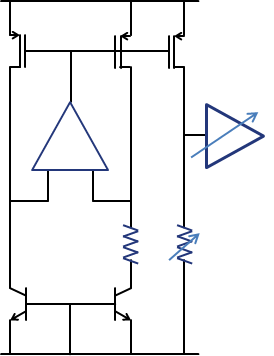

Bandgap-based reference voltage generator
Description:
The VREF cell of the nSBG_XF180_1V8 library is a buffered high precision bandgap reference voltage generator IP cell powered at 1.8V ±10% (bandgap) and 3.3V ±10% (buffer), designed on the XFAB XH018 technology.
Applications:
AD and DA converters
Precision regulators
Battery-powered instrumentation
Portable medical equipment
Main features:
1.8V/3.3V ±10% power supply
1.4V to 2.0V programmable output voltage
1mA output current capability (sink/drive)
-40 to +125°C junction temperature
Less than 15ppm/K temperature drift
68dB power supply rejection
Standby/power down mode
Embedded bias circuitry
Low silicon surface
Product brief:
Main characteristics:
1.8V/3.3V ±10% power supply
-40 to +125°C
XFAB XH018
Deliverables:
GDS II layouts
LEF abstracts
CDL netlists
Liberty timings
Verilog description
A full datasheet
An integration note
Status:
Silicon proven
Radiation proven:
No
Automotive grade:
No
